Bottom Drawer Vanity Woodworking Plans

Bottom Drawer Vanity Woodworking Plans

Regular price $11.00 USD
Regular price Sale price $11.00 USD
Sale Sold out
Shipping calculated at checkout.
Size

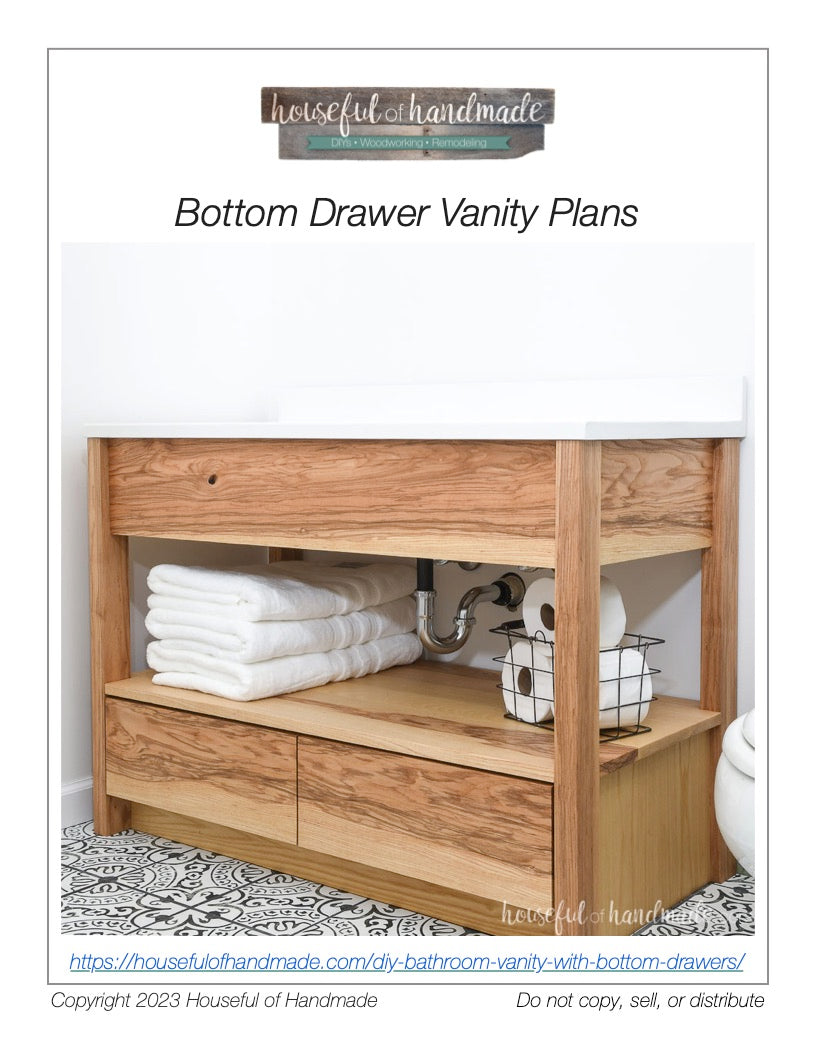

Printable PDF woodworking plans for the bottom drawer vanity with open shelf.

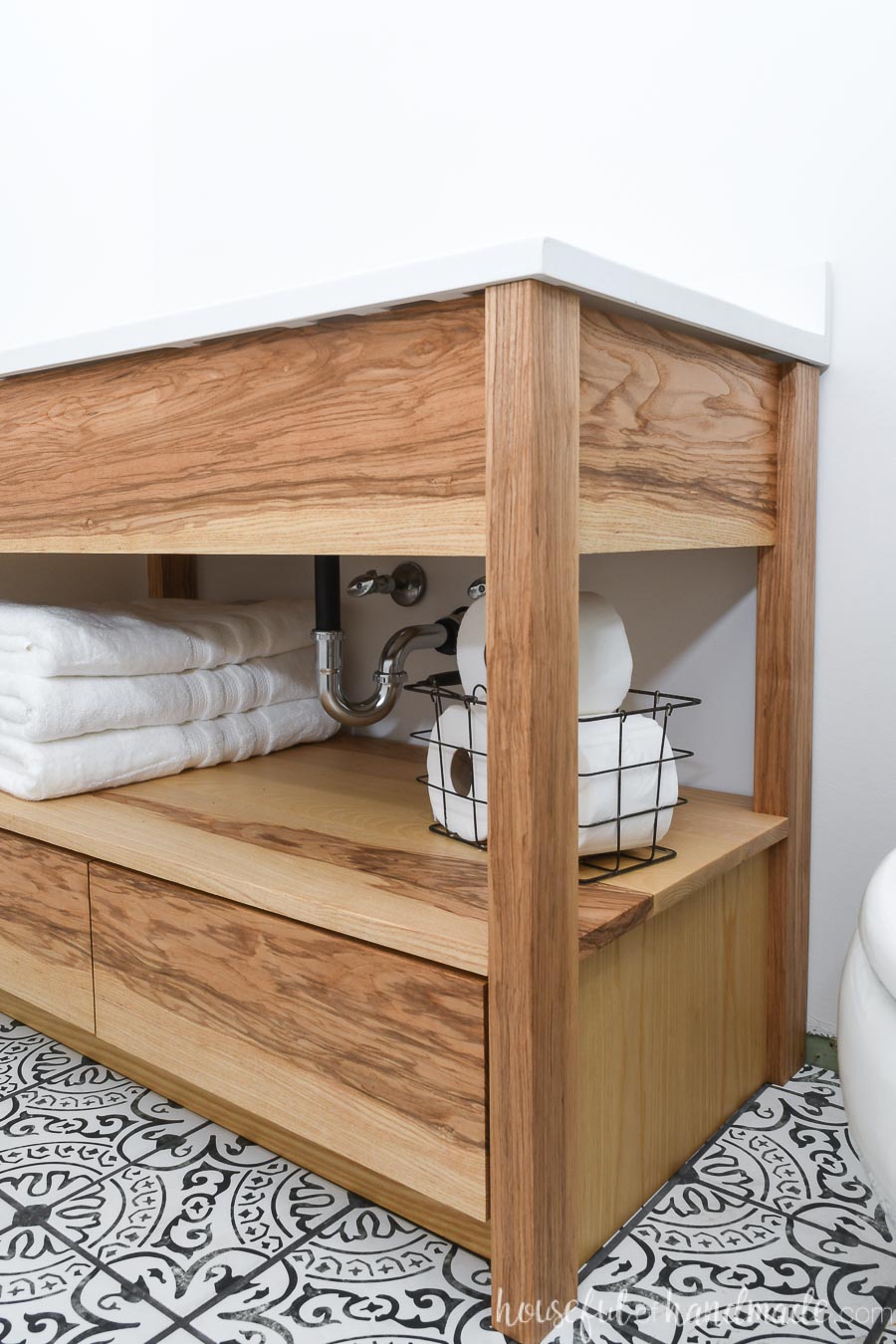

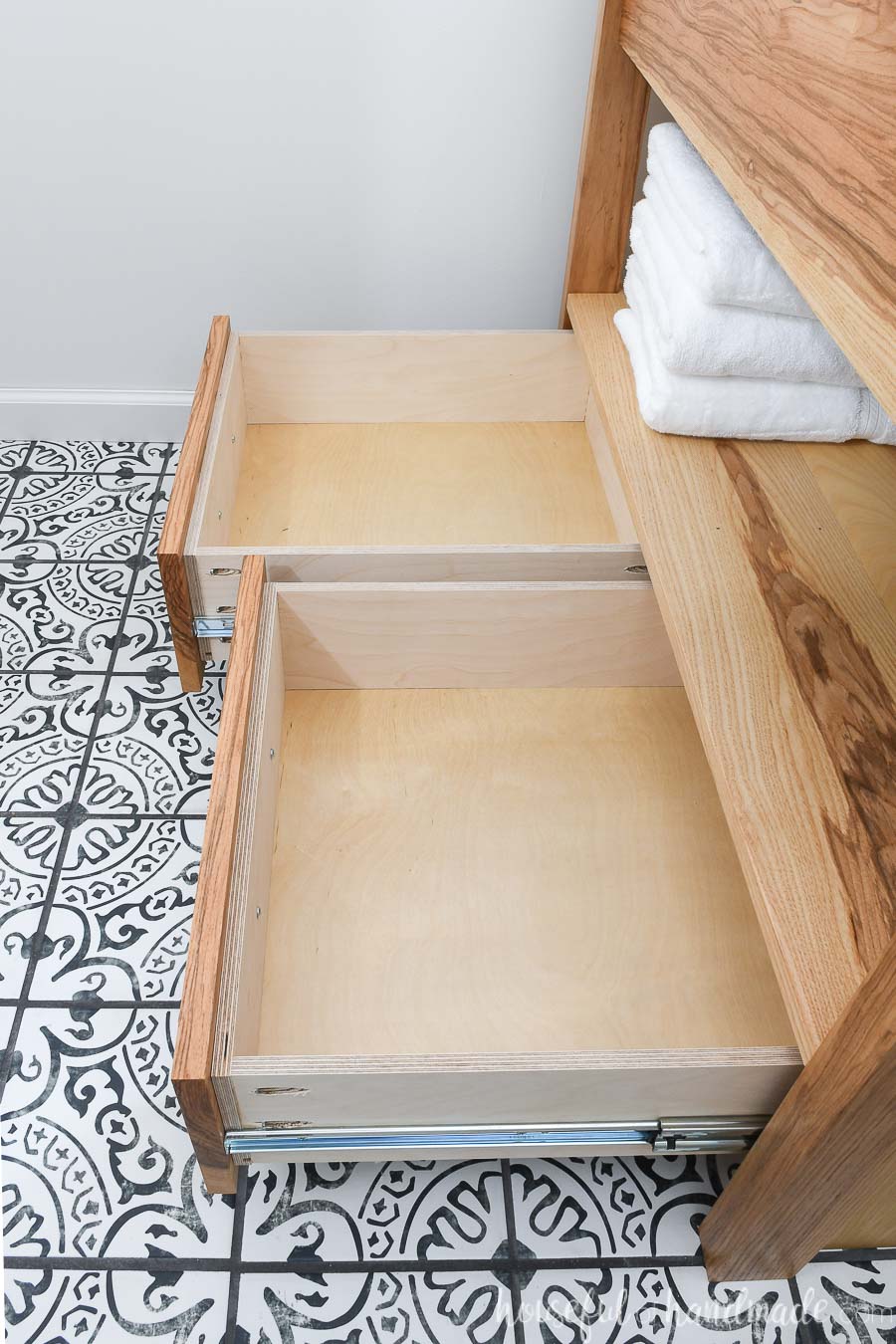

Update your bathroom with a new modern vanity. The open shelf makes installing a sink easy. Underneath that is room for large drawers for plenty of storage.

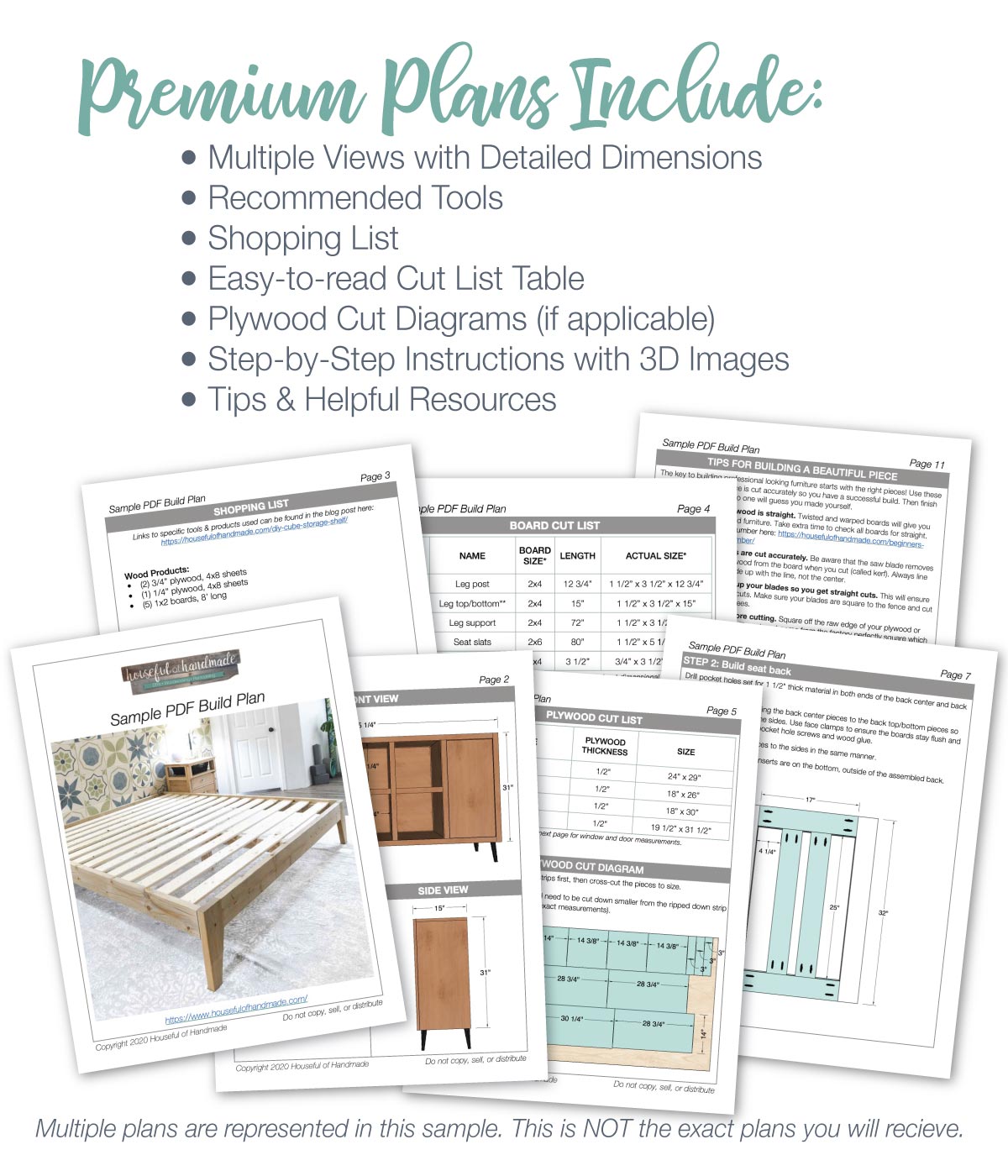

Premium PDF Plans include:

  • Recommended Tools
  • Shopping list
  • Easy to read cut list table
  • Plywood cut diagrams
  • Step-by-step instructions with 3D renderings
  • Helpful resources

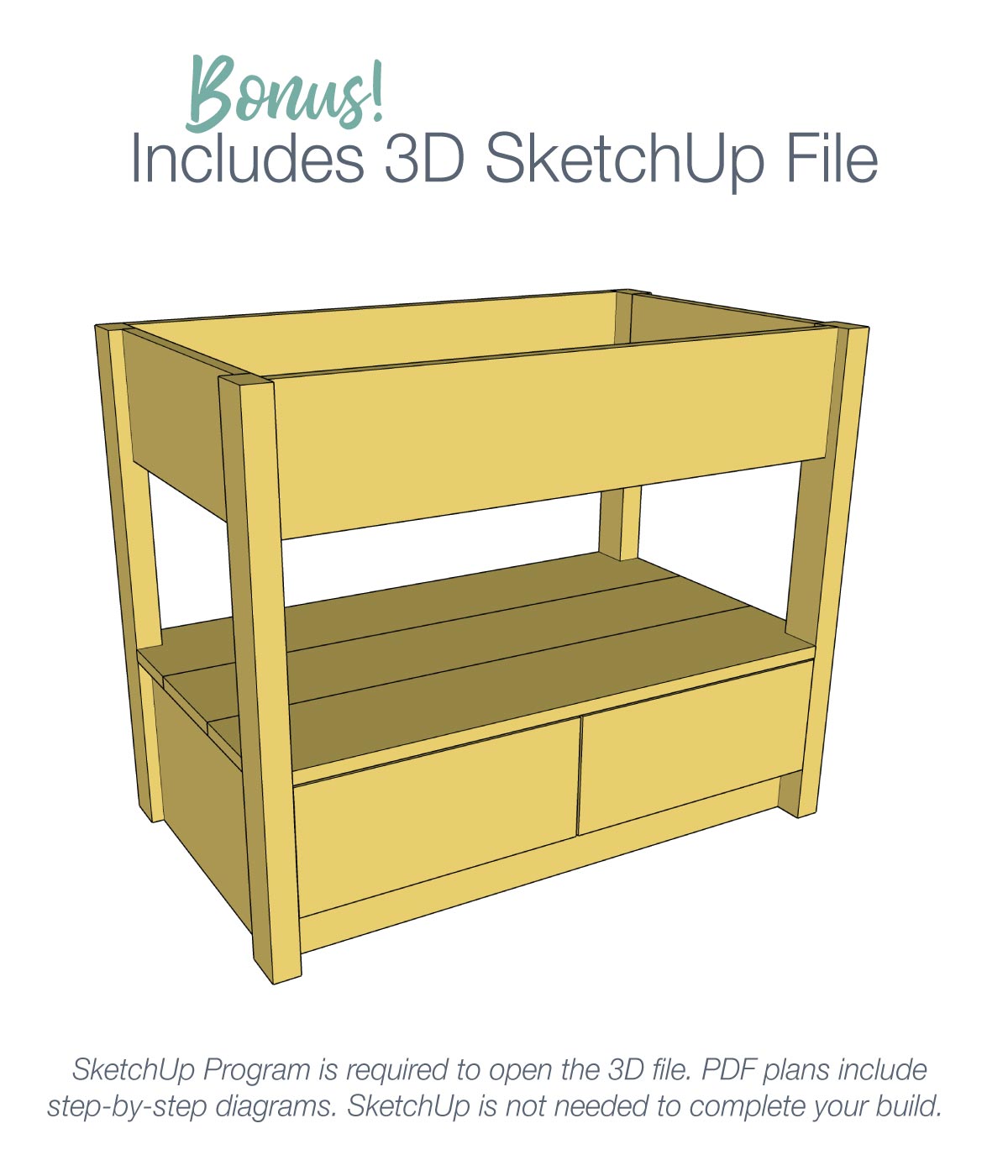

  • BONUS: 3D SketchUp file

Select the width to fit your bathroom space:

  • 30" wide with (2) 12 1/8" x 18" drawers
  • 36" wide with (2) 15 1/8" x 18" drawers
  • 48" wide with (2) 21 1/8" x 18" drawers
  • 60" wide with (3) 17 1/2" x 18" drawers

Vanity sizes are made to fit standard off-the-shelf vanity tops. Final vanities are 21 1/2" deep x 30" tall.

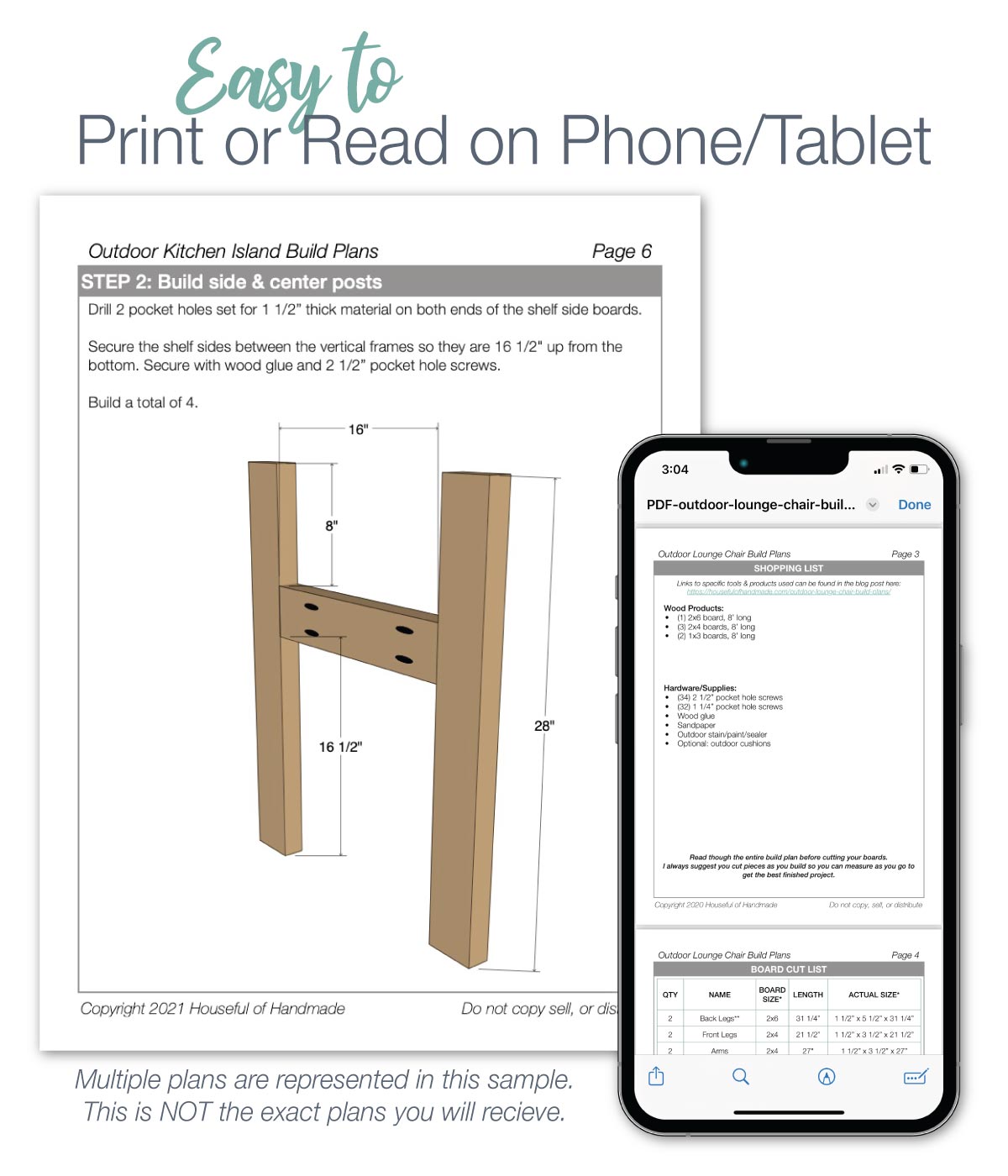

    * PLEASE NOTE: You are purchasing the digital files only, no actual product will be shipped. The build plans are delivered as a downloadable PDF that you can print or view on any device.

    ** All build plan measurements are in inches, NOT METRIC.

    What You'll Receive

    Printable PDF Build Plans
    Bonus SketchUp File

    Finished Dimensions

    21 1/2" deep x 30" tall x various width

    Materials Needed

    (2) 2x3, 6’ long boards
    (3-5) 1x8, 8’ long boards
    (1-2) 3/4” plywood, 4x4 sheet
    (1-2) 1/2” plywood, 2x4 sheet
    (1-2) 1/4” plywood, 2x4 sheet
    1 1/4” pocket hole screws
    1” pocket hole screws
    5/8” brad nails
    18” drawer slides
    Wood glue
    Sand paper

    Recommended Tools

    Miter saw
    Table saw or Circular saw with guide tracks
    Jig saw
    Pocket hole jig
    Drill
    Impact driver (optional)
    Brad nail gun
    Clamps
