Modern Display Cabinet Woodworking Plans

Modern Display Cabinet Woodworking Plans

$11.00 USD
$11.00 USD
Sale Sold out
Shipping calculated at checkout.

Printable PDF woodworking plans for a glass door storage cabinet.

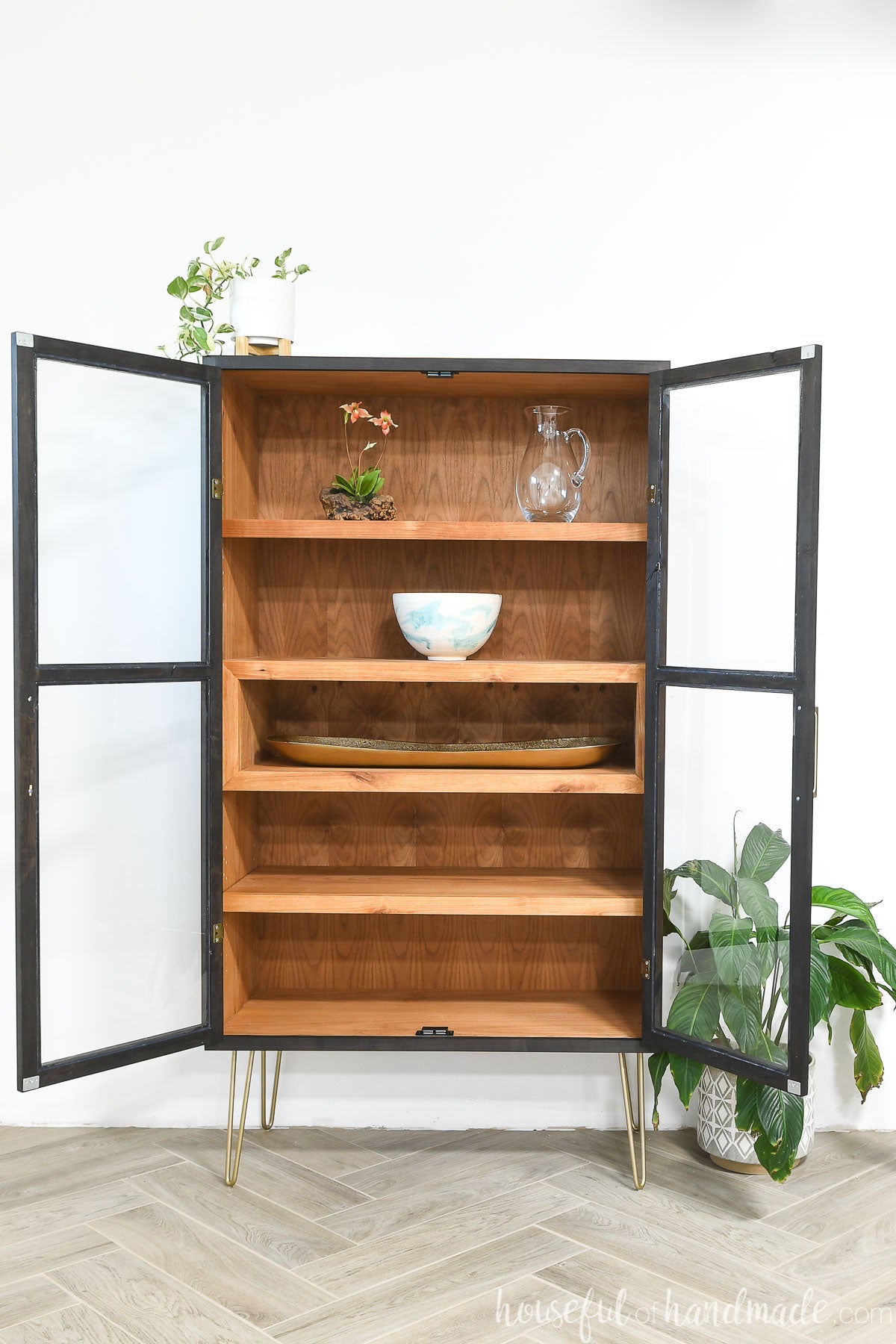

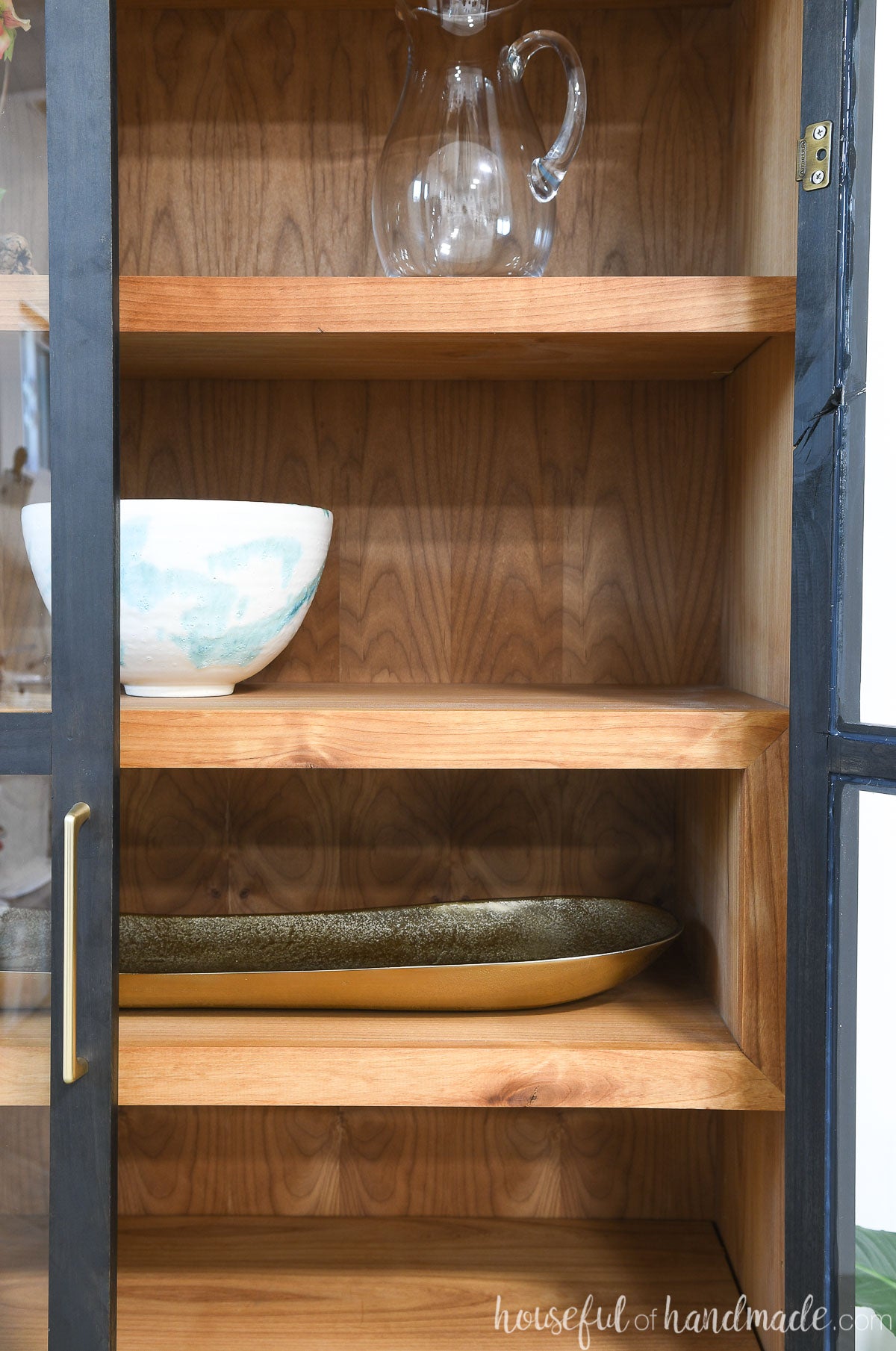

Create space for storage and display with this modern display cabinet. There is a cubby in the center that is not-adjustable and 2 adjustable shelves.

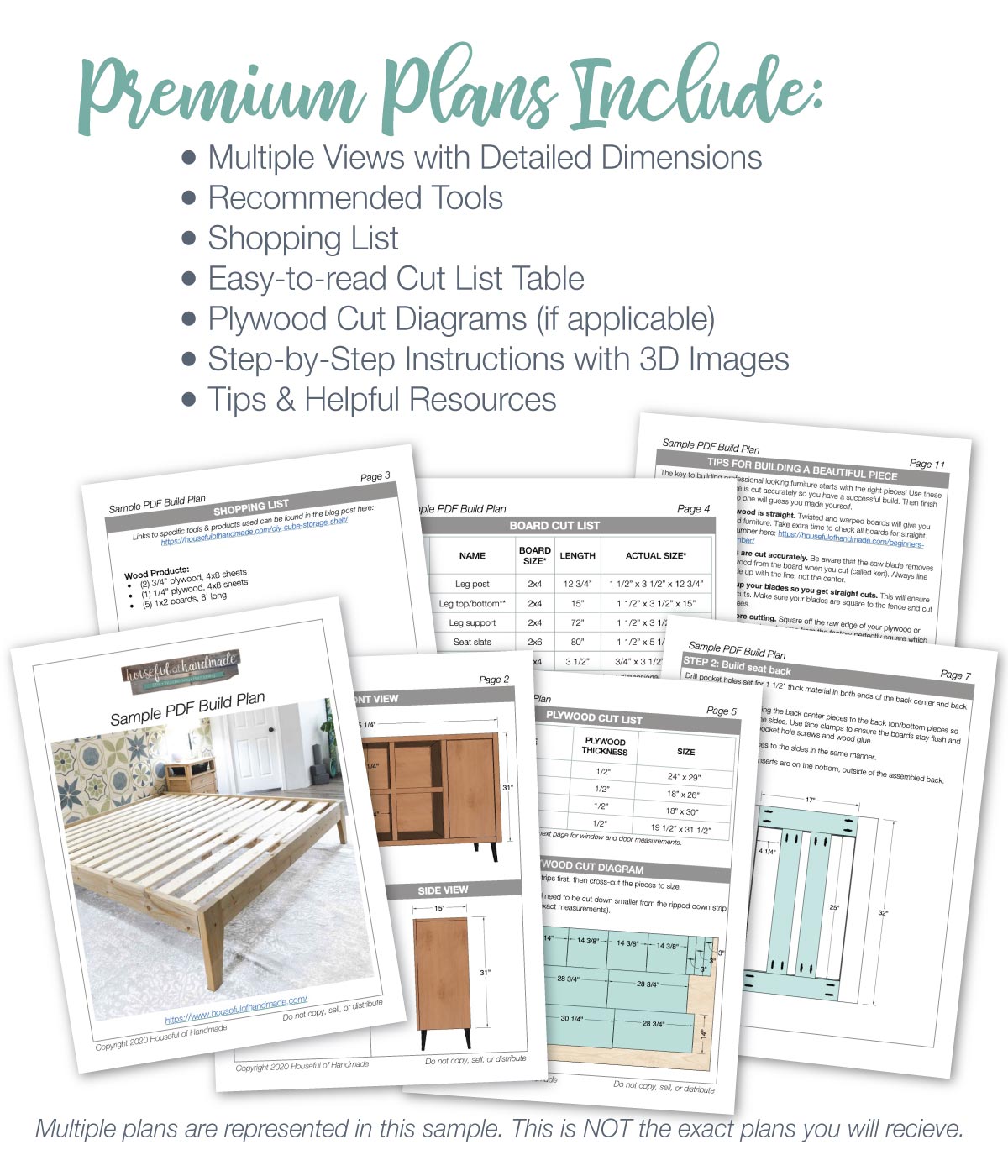

Premium PDF Plans include:

  • Recommended Tools
  • Shopping list
  • Easy to read cut list table
  • Plywood cut diagrams
  • Step-by-step instructions with 3D renderings
  • Helpful resources

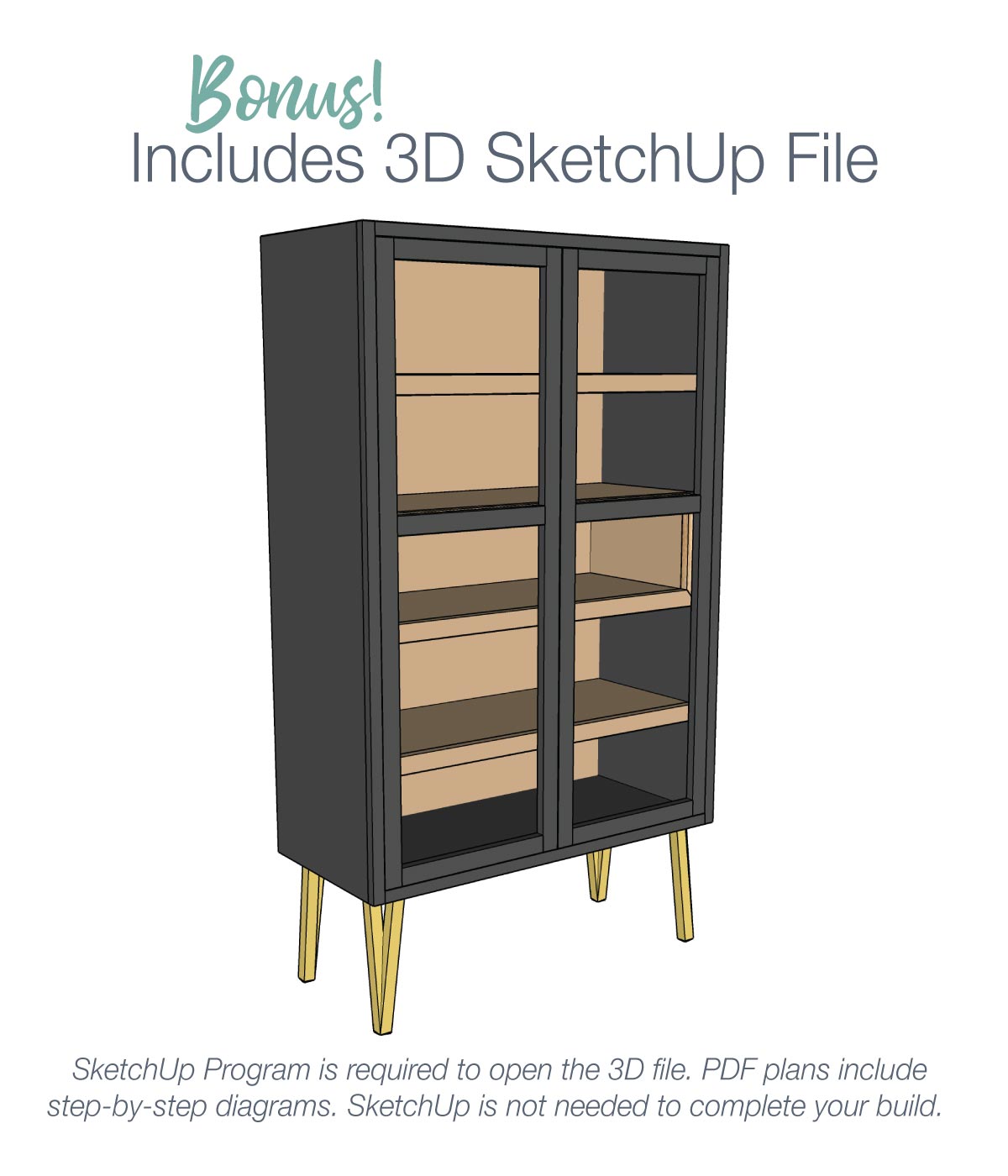

  • BONUS: 3D SketchUp file

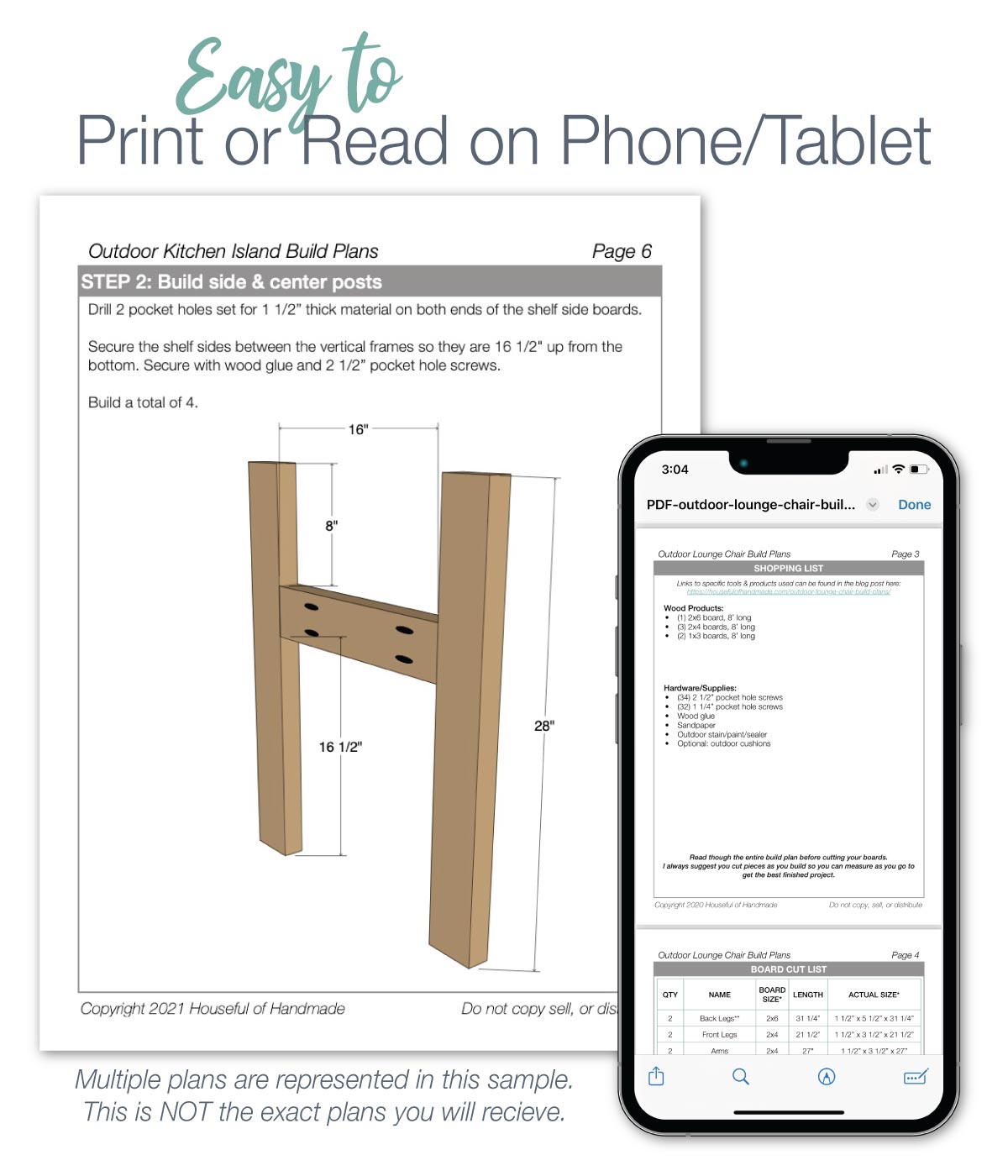

* PLEASE NOTE: You are purchasing the digital files only, no actual product will be shipped. The build plans are delivered as a downloadable PDF that you can print or view on any device.

** All build plan measurements are in inches, NOT METRIC.

What You'll Receive

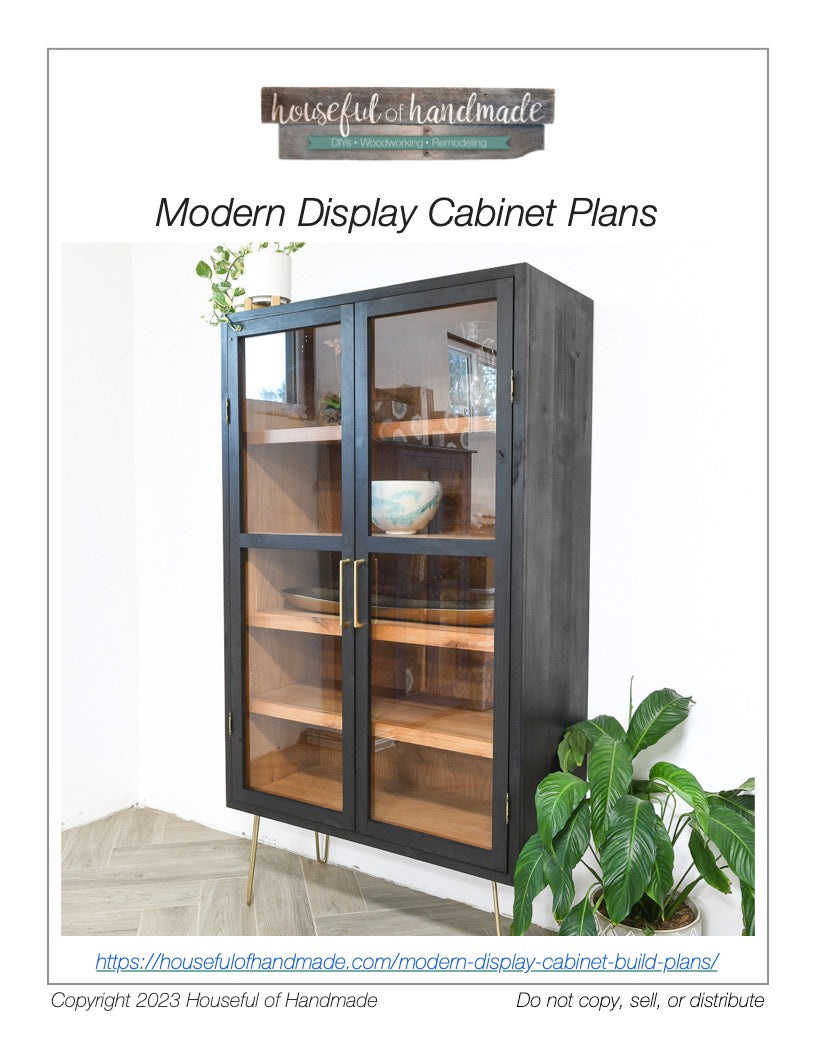

Printable PDF Build Plans
Bonus SketchUp File

Finished Dimensions

36" wide x 15 3/4" deep x 64" tall (52" cabinet with 12" legs)

Materials Needed

(1 1/2) 4x8 sheet, 3/4” plywood
(1) 4/8 sheet, 1/4” plywood
(7) 1x2, 8’ long boards
1 1/4” pocket hole screws
1 1/4” brad nails
5/8” brad nails
Wood glue
Glass for doors
Clear 100% silicone
(2 pair) hInset door cabinet hinges
(4) 12” furniture legs
(2) Door pulls
Shelf pins
Sand paper

Recommended Tools

Miter saw
Plunge saw, circular saw or table saw
Pocket hole jig
Drill
Impact driver
Brad nail gun
Trim router
Shelf pin jig
Clamps
Caulk gun

Customer Reviews

Based on 3 reviews
100%
(3)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
R
Rodney Allen
Just what the Dr ordered

Great plans. Thorough and concise.

B
BRICE TAYLOR
Great plans

Plans were detailed, organized and very easy to follow. The build went smooth with the assistance from the plans purchased. Would highly recommend.

G
Ginger Gilley
Modern display cabinet

We have completed the build, did not want the doors so left them off. Needed more detail for why the cubby shelf. Desperately needed a solid top. We added one. Looks beautiful.

The cubby shelf is mostly for design. But also adds stability to the large cabinet. If you do not want the the cubby, you could add stability with a permanent shelf instead.
